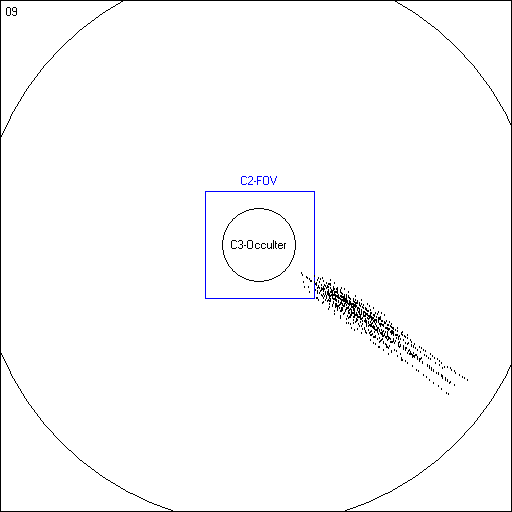

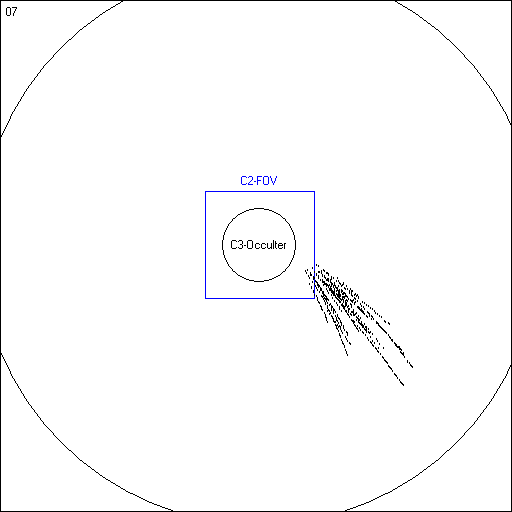

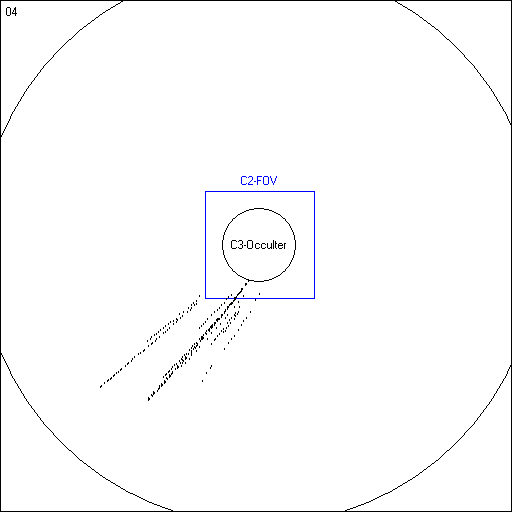

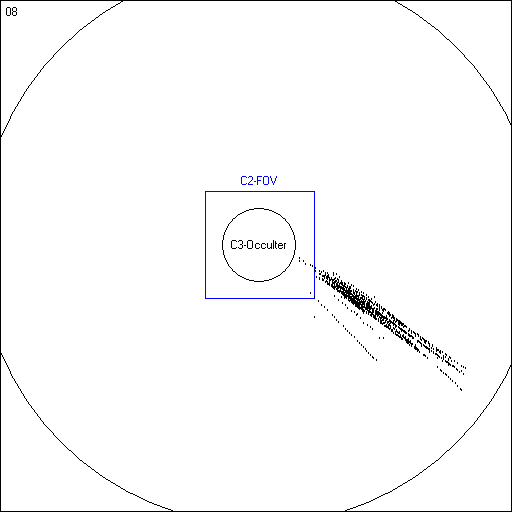

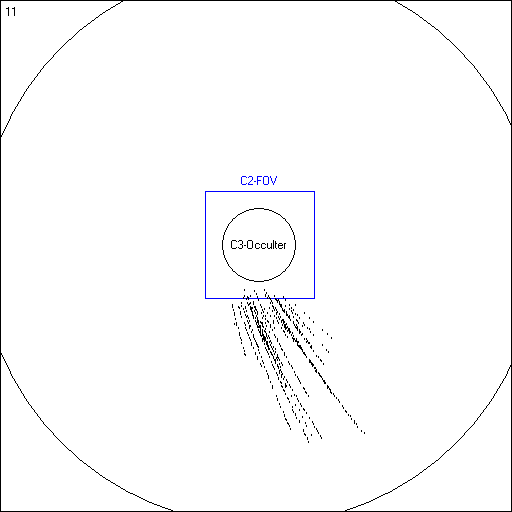

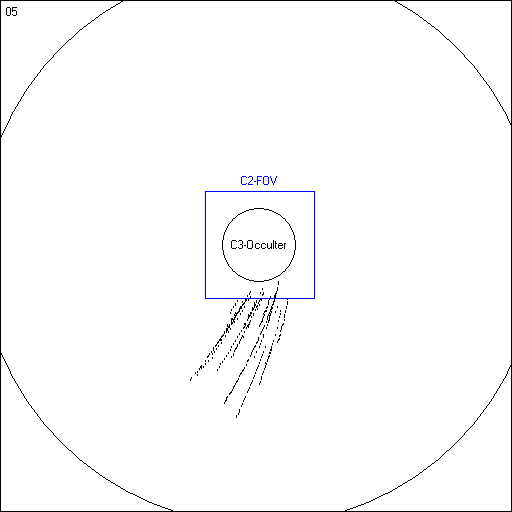

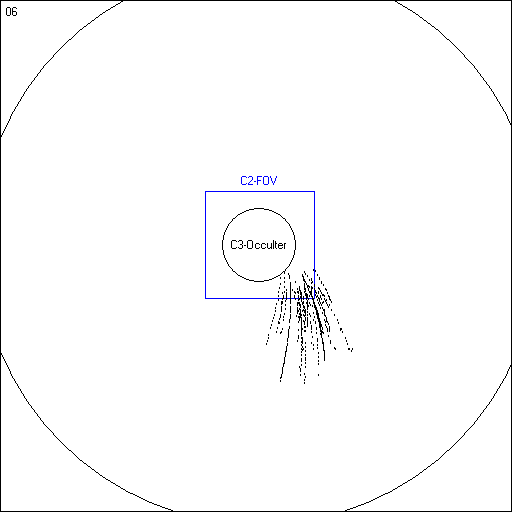

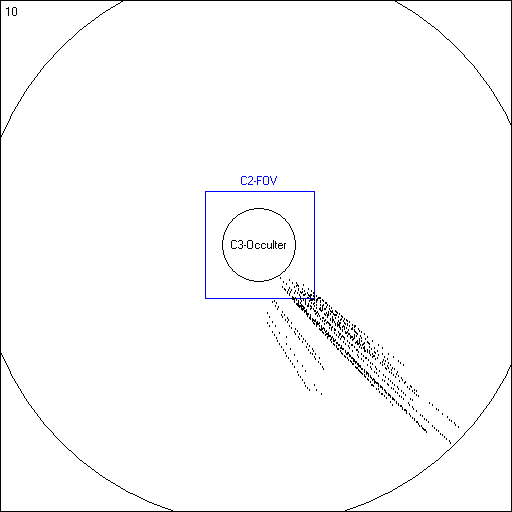

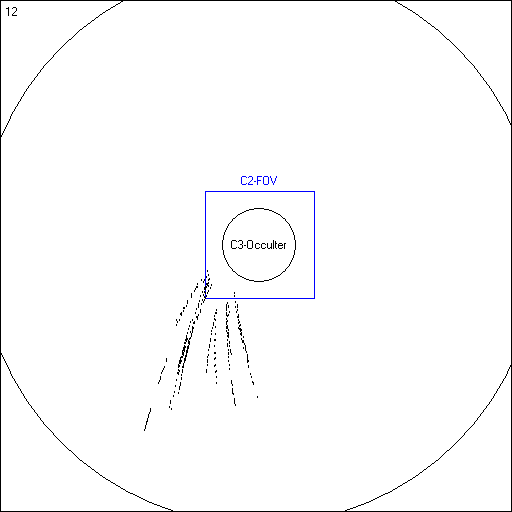

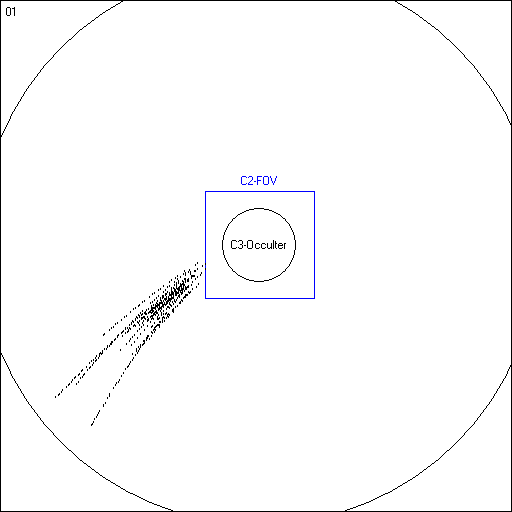

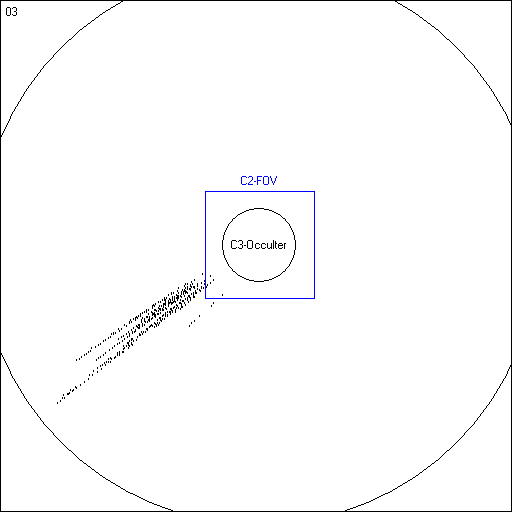

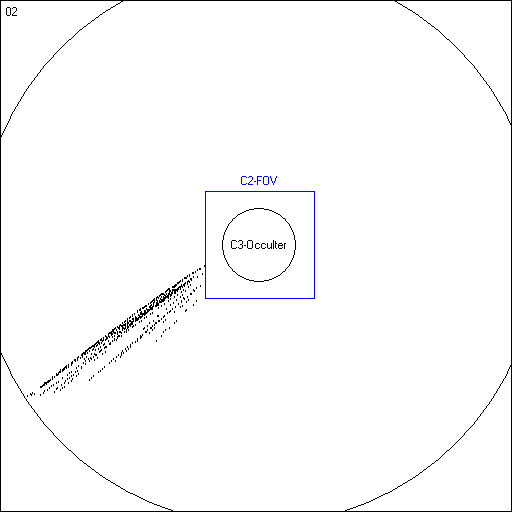

Kreutz C3 positions from the astrometry files 1996-2004
ordered by month (01 - 12)

The positions are essentially unprocessed (only scaled down from 1024 x 1024 to 512 x 512 image size).
The C3-occulter is centered at the C3 sun position. The C2-FOV is drawn to scale around the C2 sun position. The border of the C3 field is only approximate.
For 2004 Jan-Mar and 2003/2004 Jul-Sep the tracks are shifted to match the rotated sun position.
I have deleted the anomalous tracks (due to anomalous roll angles) from SOHO-58/108/113 in 1999 Feb/Mar.
